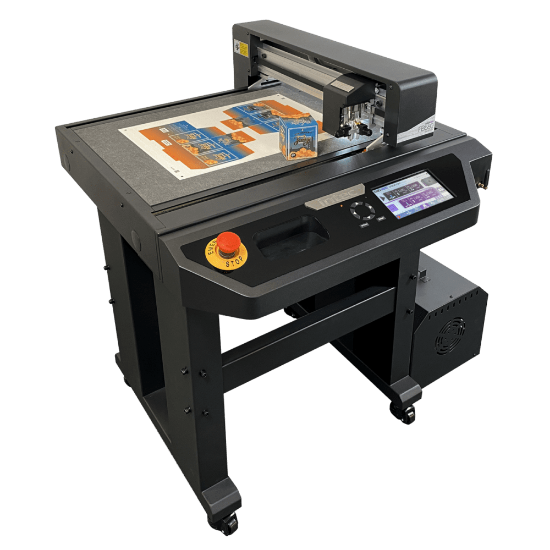

Intec ColorCut FB580 Flatbed Cutter (SRA3)

Dual Tool Flatbed Cutter
Dual Tool:
1. Passive cutting blade
2. Creasing ball tool

- Maximum Media Area: 13.7" x 20.4" (350mm x 520mm)., Maximum Effective Contour Cutting Area: 13" x 19.2" ( 330mm x 488mm).
- Max. Cutting & Creasing Pressure 1,200g (2.1Lbs ) each tool
- Vision3 CCD Camera Sensor for fast sheet recognition and job retrieval.
- Max. Speed: 1200mm per second / Max thickness 600 micron
- Includes 400W Vacuum Suction system 1 x Green Cutting Mat, 1 x Grey Felt Cutting Mat
- 7" Front mounted Articulating enhanced ColorCut GUI Info-Control panel, Stores up to 1million jobs *Using optional USB Storage.
- Includes Stand, and Housing for Vacuum Fan. (Acoustic Muffler optional)

Software: ColorCut Professional v5 Software (2 User) - With Remote job library and productivity features, plus1yr ColorCut Software Maintenance Plan.

Accessories Pack included: 1 x 30° Blade, 1 x 45° Blade, 1 x 60° Blade, 3 x 45° Circlip Knife, 3 x 60° Circlip Knife, Dual ended creasing tool (Narrow crease/Wide crease), Calibration pen tool.

ColorCut FB580 – Affordable, Versatile, Compact!

The premium Intec ColorCut FB580 B3 Digital-die Cutter is the entry-level to the highly successful digital-die flatbed range.

This is the perfect partner for your business to deliver truly professional digital cutting, creasing, and perforation, of any shape, on a range of materials up to 600 micron.

New generation cutter with Intec’s

flatbed series design DNA

Intec ColorCut. A future-proof investment.

All ColorCut flatbed cutters are digital, enabling users to react instantly and on demand to any market opportunity. No need to wait for the making of costly conventional dies – users can start cutting immediately from suitable vector artwork.

Acclaimed ColorCut Pro 5 software included

ColorCut Pro software supplied as standard

This software reads vector artwork lines via the integral camera, which retrieves the associated cutline from the Server’s Job Library. SmartMarks ensure accurate registration to the printed sheets. This software gives the user sophisticated control over the entire cutting and creasing process – even enabling cut line modifications to be made on the fly.
